OKUMA LFS10-2SP

Images (9)
Video (1)
Overview
Type:
CNC Lathes
Manufacturer:
OKUMA
Model:
LFS10-2SP
Condition:
Used - Excellent
Year:
1997
Stock #:
933
Status:
For Sale
Description

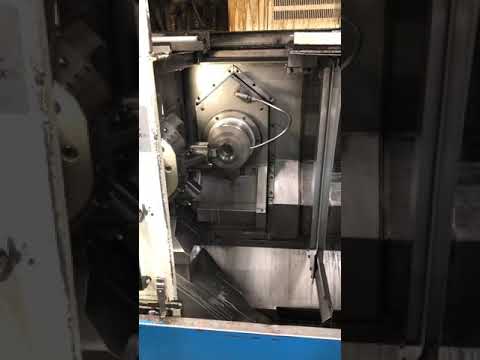

ONE USED OKUMA TWIN SPINDLE CNC LATHE with loader/unloader and gantry system Hours: as of 8/28/20 and now in warehouse and open to inspection under power. Run: 67,330 Operate: 19,585 Cut: 11,127 Non Operating: 47,744 In Pro set-up: 47,744 Spindle run: 20,720

Specifications
Swing8.6"
Machining Length3.9"
# Axis4
Chuck Size6"
Bar Capacity2"
Power10 hp
Max RPM6,000 RPM
Turning Dia8.66"
TailstockNo
Live ToolingNo
Sub SpindleNo
ControlCNC (OSP-U100L)

SWING: 8.6” MAX. TURNING DIAMETER WITH LOADER: 4.72” X 3.15” THICK MAX. TURNING DIAMETER W/O LOADER: 8.66” MAX. TURNING LENGTH: 3.9” SPINDLE BORE: 2.1” SPINDLE RPM: 50-6,000 SPINDLE HP: 10/7.5 X TRAVEL: 5.12” Z TRAVEL: 5.7” 2) EIGHT POSITION TURRETS TURRET INDEX TIME: 0.3 SEC, NON LIFTING OD TURRET TOOL SIZE: .750” ID TURNING TOOL SIZE: 1.250” RAPID TRAVERSE RATES: 945 IPM IN X & Z FEED RATES: 0.0001-39.37 IPM WIRED: 240V KVA RATING: 26 DIMENSIONS WITH LOADER: 108” X 75” (112” WITH CHIP CONVEYOR) 98.43” HIGH X 10,584 LBS. EQUIPPED WITH: OKUMA OSP-U100L CONTROLS WITH 9.5” TFT COLOR DISPLAY, MIRROR IMAGE, GRAPHIC TOOL PATH PLUS TOOL ANIMATION, ABSOLUTE POSITION ENCODERS, TORQUE LIMITER MACHINE PROTECTION, STROKE COMPENSATION, 1050 FEET OF STORAGE, INCH/METRIC, ON SCREEN PROGRAM & ALARM HELP, MACMAN MACHINE UTILIZATION REPORTING, USER TASK I+II W200 COMMON VARIABLES, LAP4 AUTO TURN THREAD GROOVE DRILL, MID-AUTO MANUAL FUNCTION, 3.5” FLOPPY, RS232C PORT AND INTEGRAL HAND HELD REMOTE & TEACH PENDANT FOR GANTRY & LOADER SYSTEMS TWO KITAGAWA MD. B206 3-JAW CHUCKS NICE COMPLIMENT OF TURRET TOOL HOLDERS INCLUDING WHAT IS ALREADY IN THE TURRETS PLUS 13) ADDITIONAL OD/ID/UNIVERSAL TOOL HOLDERS, BUSHINGS, REPLACEMENT JAWS FOR GRIPPERS IN DIFFERENT SIZES, STICK TOOLS, AND AN OKUMA TOOL BOX KIT. CHUCK JAWS ENOMOTO REAR DISCHARGE CHIP CONVEYOR OGL3FII GANTRY SYSTEM WITH DUAL CARRIERS CAPACITY PER ARM: 6.6 LBS. PART SIZE PER GRIPPER: 4.72” X 3.15” PART EXCHANGE TIME: 5.5 SEC HAND TILT TIME: 1 SEC RAPIDS IN X & Y: 200 & 100 M/MIN HAND SWING: 90 DEG/SEC 3-JAW AIR CHUCKS W/SPRING PUSHERS & 0.8” OF STROKE W/GRIP CONFIRMATION SIX POSITION LOAD/UNLOAD STATION TO RIGHT THAT BRINGS PARTS UP TO GANTRY SYSTEM LIGHTS COOLANT MANUALS: 2) SPINDLE SERVO MANUALS 2) ADDITIONAL FUNCTION MAINTENANCE MANUALS 2) EACH – SERVO MOTOR #4017E & 4018 1) OGL 3F OPERATORS AND MAINTENANCE MANUALS 2) LFS OPERATORS AND MAINTENANCE MANUALS 3) PARTS BOOKS FOR LFS10-2SP 1) EACH – ELECTRICAL FOR OSP CONTROL, 1) FOR LFS10-2SP CONDITION: EXCELLENT (RAN MOSTLY STEEL & ALUMINUM) YEAR OF MANUFACTURE: 1997 SN: 09030050 Hours: as of 8/28/20 and now in warehouse and open to inspection under power. Run: 67,330 Operate: 19,585 Cut: 11,127 Non Operating: 47,744 In Pro set-up: 47,744 Spindle run: 20,720

Equipped With

ONE USED OKUMA TWIN SPINDLE CNC LATHE Model: LFS10-2SP Swing: 8.6” Max. turning diameter with loader: 4.72” x 3.15” thick Max. turning diameter w/o loader: 8.66” Max. turning length: 3.9” Spindle bore: 2.1” Spindle RPM: 50-6,000 Spindle HP: 10/7.5 X travel: 5.12” Z travel: 5.7” 2) Eight position turrets Turret index time: 0.3 sec, non lifting OD turret tool size: .750” ID turning tool size: 1.250” Rapid traverse rates: 945 ipm in X & Z Feed rates: 0.0001-39.37 ipm Wired: 240V KVA rating: 26 Dimensions with loader: 108” x 75” (112” with chip conveyor) 98.43” high x 10,584 lbs. EQUIPPED WITH: Okuma OSP-U100L controls with 9.5” TFT color display, Mirror image, Graphic tool path plus tool animation, absolute position encoders, torque limiter machine protection, stroke compensation, 1050 feet of storage, inch/metric, on screen program & alarm help, MacMan machine utilization reporting, User Task I+II w200 common variables, LAP4 Auto Turn thread groove drill, Mid-Auto Manual function, 3.5” Floppy, RS232C port and Integral hand held remote & Teach pendant for gantry & loader systems Two Kitagawa Md. B206 3-jaw chucks Nice compliment of turret tool holders including what is already in the turrets plus 13) additional OD/ID/Universal tool holders, bushings, replacement jaws for grippers in different sizes, stick tools, and an Okuma tool box kit. Chuck jaws Enomoto rear discharge chip conveyor OGL3FII Gantry system with Dual Carriers Capacity per arm: 6.6 lbs. Part size per gripper: 4.72” x 3.15” Part exchange time: 5.5 sec Hand tilt time: 1 sec Rapids in X & Y: 200 & 100 m/min Hand swing: 90 deg/sec 3-jaw air chucks w/spring pushers & 0.8” of stroke w/grip confirmation Six position load/unload station to right that brings parts up to gantry system Lights Coolant Manuals: 2) Spindle servo manuals 2) Additional Function Maintenance manuals 2) each – Servo motor #4017E & 4018 1) OGL 3F Operators and Maintenance manuals 2) LFS Operators and Maintenance manuals 3) Parts books for LFS10-2SP 1) Each – Electrical for OSP control, 1) for LFS10-2SP Condition: Excellent (ran mostly steel & aluminum
