Never put into production!

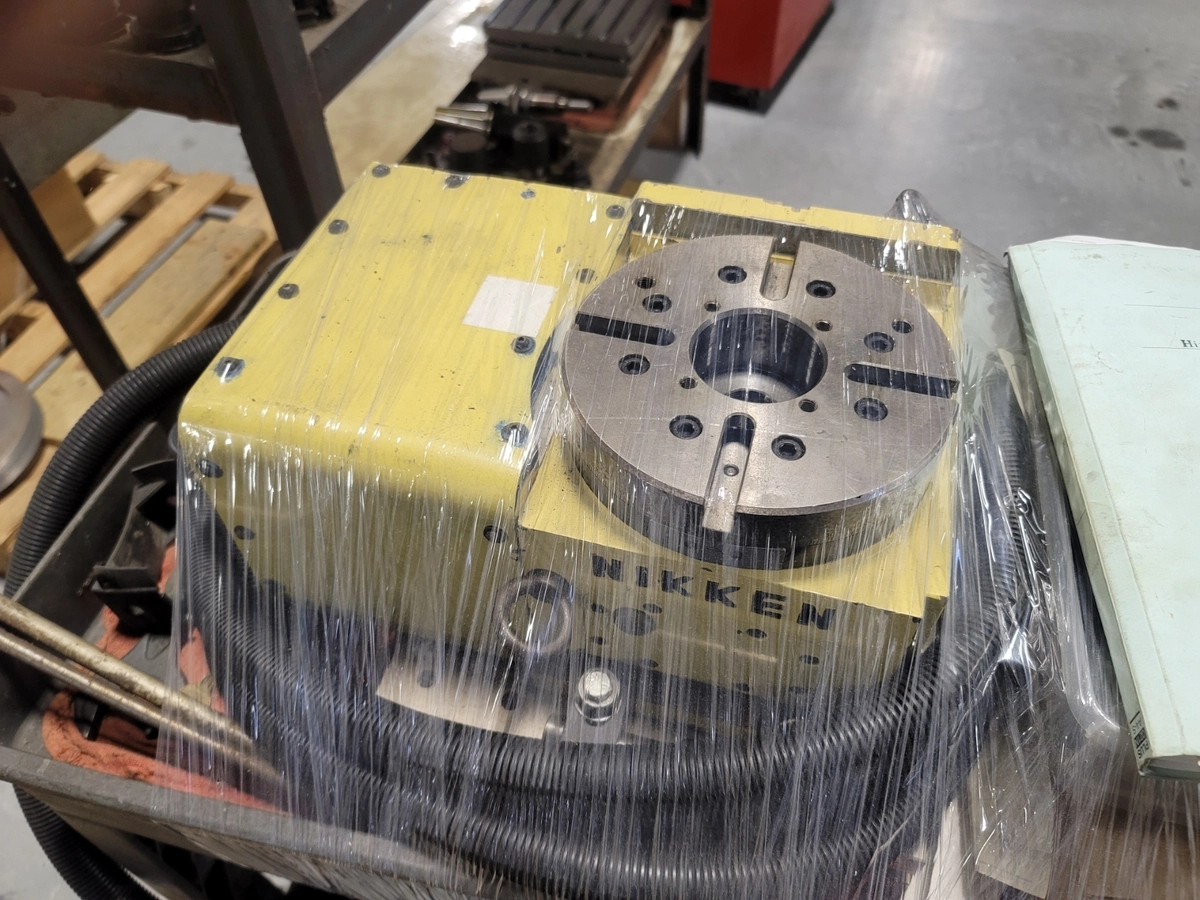

ONE LIKE NEW NIKKEN PRECISION ROTARY INDEX TABLE
Model: NSVZ 180A21-400
Table diameter: 180 mm (7.086”)
Center height: 135 mm
Width of slot: 12 mm
Clamping system: Hydraulic
Clamping torque: 910 N.m
Rotation speed: 11.1/min
Total reduction ratio: 1/180
Indexing accuracy: +/- 3 sec.
Net weight: 60 kg
Max weight load:
At 90 degrees: 50 kg
Flat: 100 kg
Max thrust load:
At 90 degrees: 569 N.m
Flat: 23,520 N
Max work inertia at 90 degrees: 0.14 kg.m squared
Dimensions: 545 mm long x 320 mm high x 290 mm thick
EQUIPPED WITH:
Built in Hirth Coupling Indexing
Hydraulic system
Yaskawa Drive
Nikken Md. 21- 400 watt Controller, with minimum command increments of 0.001” or 1 sec., M signal provides unequal dividing, equal dividing, arc cutting, lead cutting, etc., RS-232, and hand held remote.
Condition: Excellent, SN: 2141
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
