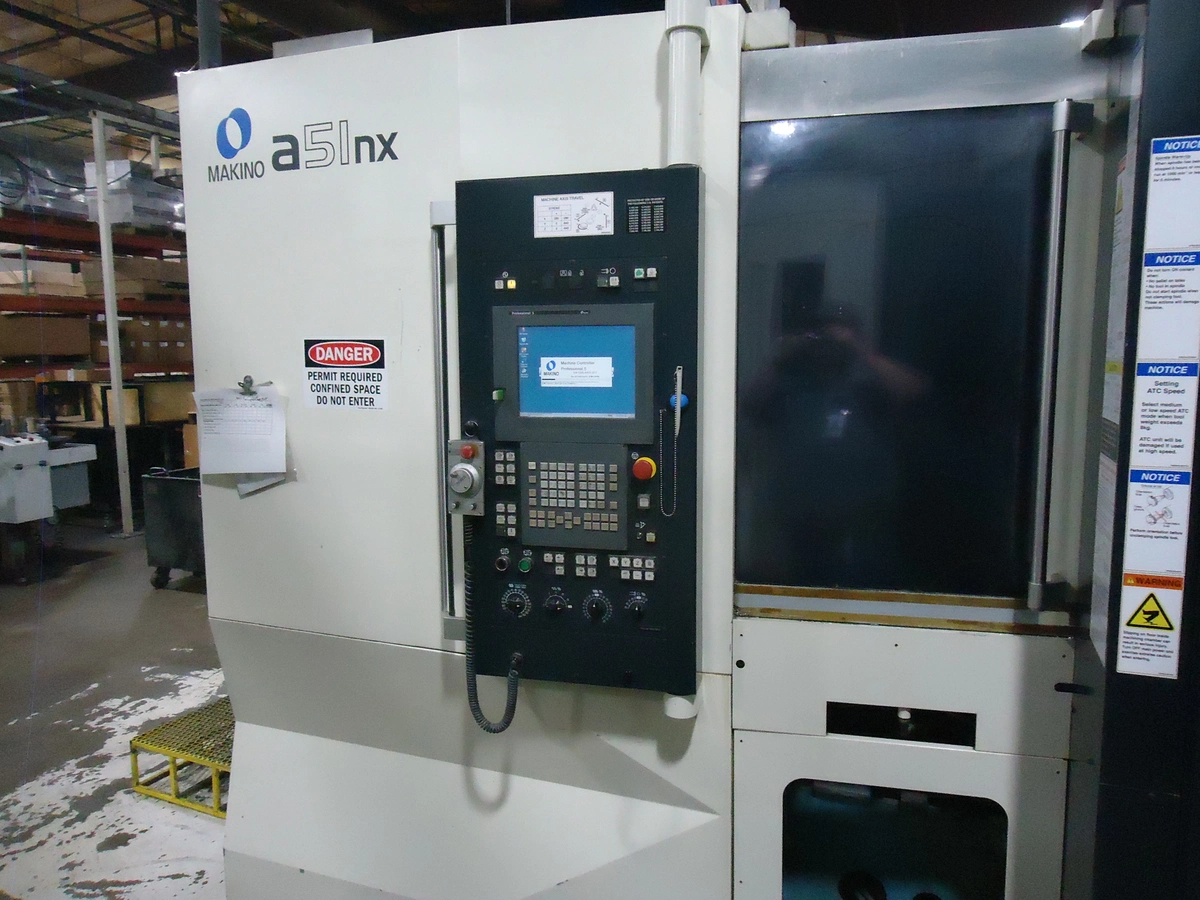

Makino Md. a51nx 4-axis Horizontal machining Center

ONE USED MAKINO 4-AXIS DUAL PALLET HMC

Model: a51nx
Pallet size: 15.7” x 15.7”
Travels: 22” x 25” x 25.2” in Z
Rapid Feed rates: X,Y, Z: 2,362 ipm
Max. feed rates: X,Y,Z: 1,968 ipm
B1: 47 rpm
Max. work piece: 1,100 lbs.
Spindle HP: 50
Spindle taper: Cat 40
Spindle ranges: 2
Spindle rpm: 14,000
Spindle torque: 240 Nm
ATC capacity: 60
Dimensions: 98” x 135” x 106” x 17,200 lbs.

EQUIPPED WITH:
Fanuc Professional 5 controls
Hosnic Md. RD3C-112A built in Chip conveyor
Coolant thru spindle
Full 4th axis
1G axis acceleration
One piece way covers
Step down transformer

New 2012

Hours:
ON: 17,153
Operating: 16,851
Cut: 11,417
Spindle run: was 15,790 on old spindle which has been replaced with a new one by Makino due to poor surface finishes and has about 60 hours on the new spindle.
Machine was making good parts upon purchase.
