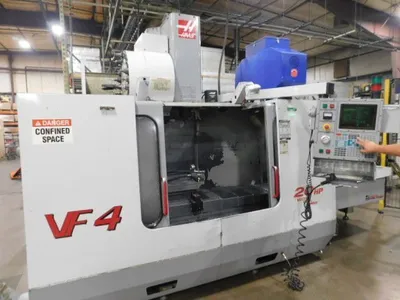

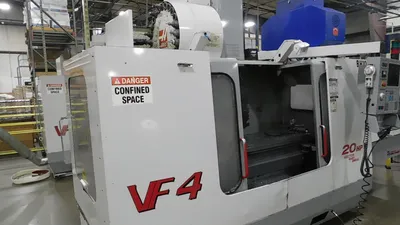

Haas Md. VF-4 APC four axis VMC

THREE USED HAAS VMC’S, TWO WITH HAAS PALLET CHANGERS

Model: VF-4
Table size: 40” x 19”
Travels: 50” x 20” x 25”
Spindle speeds: 10,000 rpm
Spindle HP: 20
Spindle taper: Cat 40
Spindle nose to table: 29” to 4”
Max. Feed speeds: 650 ipm
Max. Rapid travels: 1,000 ipm

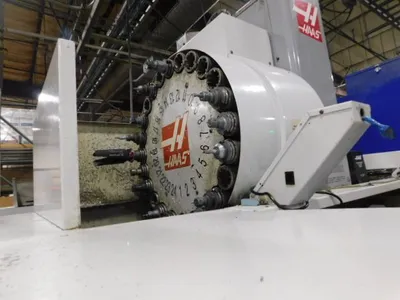

Side mounted ATC capacity: 24 place
Tool change time: Cut to cut – 4.2 sec.
Max. tool weight: 12 lbs.
Max. tool diameter with empty pockets: 3.5”
Dimensions: 123” wide x 110” deep x 118” high operating height x 12,000 lbs. (add 16” to the width for the chip auger)
Wired: 220v/3ph/60 cy

EQUIPPED WITH:
Programmable coolant nozzle
Chip auger
Rigid tap
High Intensity lighting

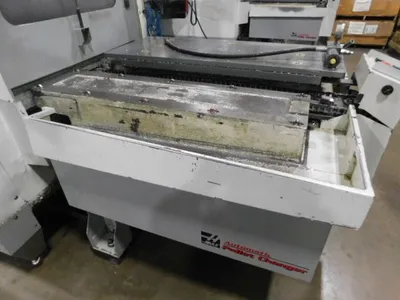

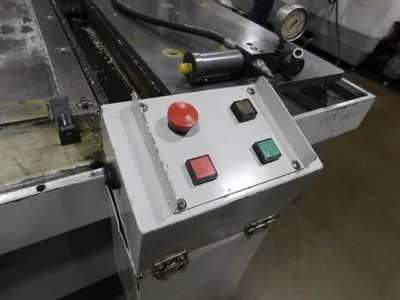

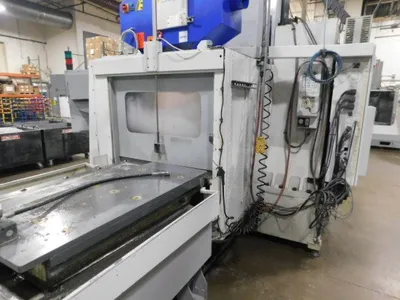

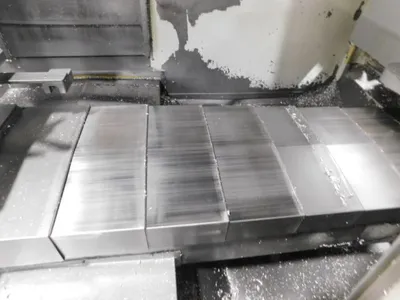

Two machines have a Haas Dual pallet changer with 2) 40” x 19” pallets each and 48” x 18 7/8” sub plates mounted to each pallet.
Pallet changer dimensions: 62” x 51”

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

Machine #1: Equipped with a Haas Dual pallet changer, SN: 22467, new 2000

Machine #2: Equipped with a Haas Dual pallet changer, SN: 22470, new 2000

Video link: https://youtu.be/YRmd80LhW40

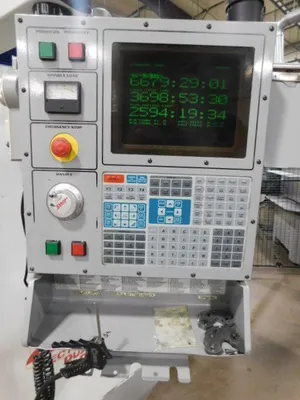

Machine #3: No pallet changer shown (there is one that might need some service done to make it functional), Rotary table shown is not included. SN: 22537, New 2000,with an updated control and a digital remote pendant control

Video link: https://youtu.be/gtueqwvjfu8

F.O.B. - Elk Grove Village, IL
