Doosan Puma 4100LB 2-xis CNC lathe

One used Doosan Puma 4100B Boxed Way two-axis CNC Lathe

SPECIFICATIONS

CAPACITY:
Swing over bed 790 mm (31.1")
Swing over carriage 590 mm (23.2”)
Maximum turning diameter 550 mm (21.7")
Maximum turning length 82.4"
Distance between spindle nose and tailstock center 84.8"

SPINDLE:
Spindle speed 2,000 rpm
Spindle nose A2-11
Draw tube ID 117.5 mm (4.62")
Spindle bore diameter 132 mm (5.2")
AC spindle motor (30 min. rating) 37 kW (50 hp)
Spindle speed ranges 2
Maximum spindle torque (30 min. rating) 3,280 Nm (2,419 ft-lb)

BED, SADDLE & CROSS SLIDE:
Angle of slant bed 45 degree
X axis travel 352 mm (13.8")
Z axis travel 1,105 mm (43.5")
X axis guide way span 360 mm (14.2")
Z axis guide way span 420 mm (16.5")
X axis rapid traverse rate 16 m/min (630 ipm)
Z axis rapid traverse rate 20 m/min (790 ipm)
X axis ball screw diameter 40 mm (1.57")
Z axis ball screw diameter 50 mm (2.0")
X axis feed thrust (continuous) 15,517 N (3,488 lb)
X axis feed thrust (intermittent) 21,724 N (4,884 lb)
Z axis feed thrust (continuous) 16,958 N (3,812 lb)
Z axis feed thrust (intermittent) 23,741 N (5,337 lb)

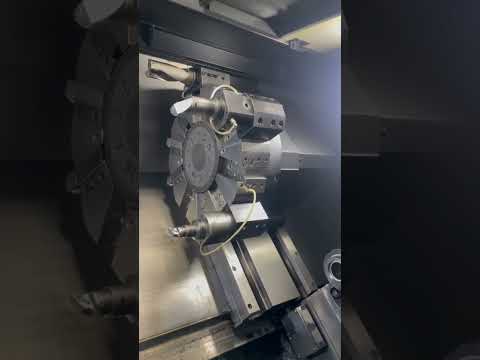

TURRET:
Number of tools 10
Turret index time (next station swivel time) 0.25 second
Tool selection Bi-directional

TAILSTOCK:
Tailstock center MT #5
Tailstock quill diameter 120 mm (4.7")
Tailstock quill stroke (programmable) 120 mm (4.7")
Maximum tailstock quill thrust 14.3 kN (3,210 lb)
Maximum tailstock hydraulic pressure 40 bar (580 psi)
Tailstock guide way span 300 mm (11.8")

COOLANT SYSTEM:
Coolant pump pressure 4.5 bar (65 psi)
Coolant pump motor 1.1 kW (1.4 hp)
Coolant tank capacity 280 l (74 gal)

HYDRAULIC / LUBRICATION:
Hydraulic tank capacity 16 l (4.2 gal)
Hydraulic oil required* Mobil DTE #24 or Shell Tellus 32
Way lubrication tank capacity 4.3 l (1.1 gal)
Way lubrication oil required* Mobil Vactra #2 or Shell Tonna T68

* Specifications are for a new machine

GENERAL:
Machine weight - 25,130 lbs.
Floor space – length x width 227" x 90" x 89.5" high
Floor space – length with hinge belt chip conveyor add abpout 50"
Machine Height 2,194 mm (89.5")
Height from floor to spindle center 1,127 mm (44.4")
Voltage required 205-235V/3 ph/60 Hz
Power requirement 52 kVA (137 Amps @ 220 Volts)

EQUIPPED WITH:
Fanuc i controls
15” hydraulic 3-jaw chuck (Machine will accept a 18” 3-jaw)
Chip conveyor
Tool setter
Programmable Tail stock (body clamp, drive pin, and quill)
Tool holders
SMW Md. SLU-4-ZS steady rest with 30-245 mm capacity, SN: 5336, ID # 122185
Manuals
Hours:
ON: 12,289
Run: 1,773
Cut: 2,394
