2012 Victor Md. Vturn 46 2-axis, boxed way CNC lathes

TWO USED VICTOR VTURN 2-AXIS CNC LATHES

Model: Vturn 46
Swing over bed: 820 mm/32.28”
Std. part size: 520 mm/20.472”
Max. part size: 730 mm/28.74”
Distance between centers: 1,750 mm/68.89”
Max. machined part length: 1,650 mm/64.96”
Spindle bore: 123 mm/4.84”
Max. bar capacity: 115 mm/4.52”
Spindle: A2-11
Spindle rpm: 1,500
Spindle HP: 68.4
Rapids: 12m/min

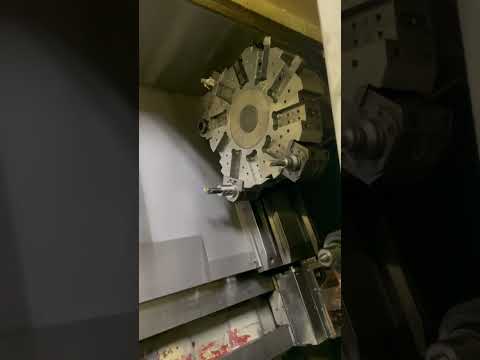

Turret stations: 10
Turret index time: 1 sec
Turret tool size: 1.25”
Max. boring bar diameter: 60 mm/2.36”
Weight: 12,800kg/28,160 lbs.
Dimensions: 244” w/o chip conveyor
Wired: 220v/3ph/50-60cy
KVA rating: 63.6
Kw: 57.2

EQUIPPED WITH:
Fanuc Oi-TF Plus with 10.4” screen
15” 3-jaw chuck (machine will accept a 18”, 21”, or 24” chuck, but there could be issues with the turret travel interfering as chuck size increases)
Chip conveyor
Tool holders
Manuals

SN: MB-1483
SN: MB-1479
New 2012

Hours:
ON: 25,150
Run: 7,708
Cut: 6,920
Hours on second machine:
ON: 24,275
Run: 7,950
Cut: 7,093

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
