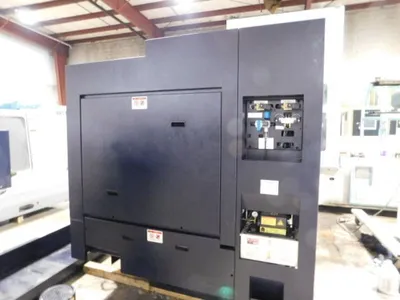

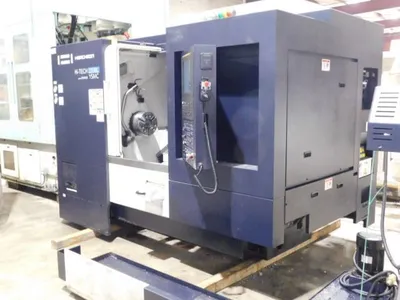

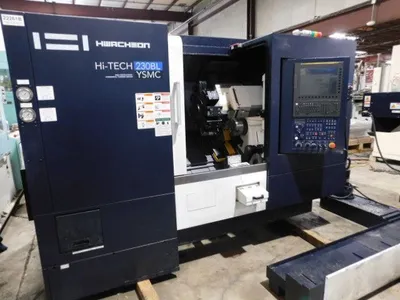

2021 Hwacheon Hi-Tech 230BL YSMC CNC lathe

ONE LOW HOUR HWACHEON BOX WAY CNC LATHE WITH Y AXIS & SUB SPDL

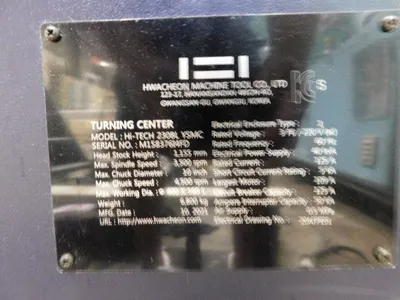

Model: Hi-Tech 230BL YSMC
Swing over bed: 29.53”
Swing over saddle: 21.26”
Max. cutting diameter: 15.74”
Std. cutting diameter: 8.58”
Max. cutting length: 20.93”
Spindle nose main/sub: A2-8/A2-5
RPM: Main/Sub: 3,500/5000
Hole thru spindle main/sub: 3.58”/2.44”
Max bar size thru main/sub: 3.19”/2.01”
Spindle motor main/sub: 22/7.4

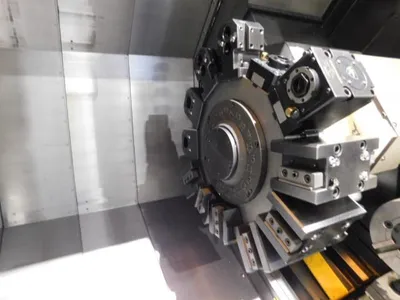

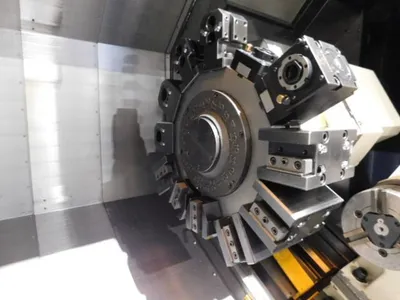

Turret: 12 stations & 24 positions
Tool size: OD: .98”, ID: 1.57”
Turret index time: 0.344 sec/step
Milling spindle HP/RPM: 7.4/5,000
Floor space: 123.35” x 75.77” x 82.83” high
Weight: 14,960 lbs.
Wired: 230v/3ph/60cy

EQUIPPED WITH:

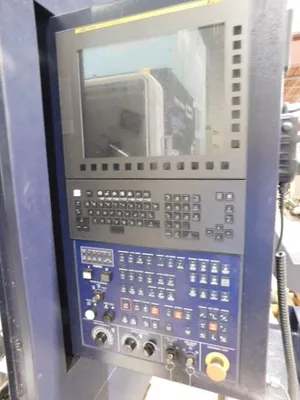

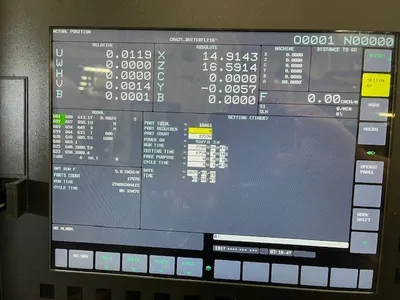

Fanuc Oi-TF controls

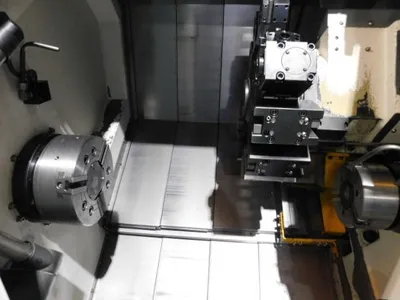

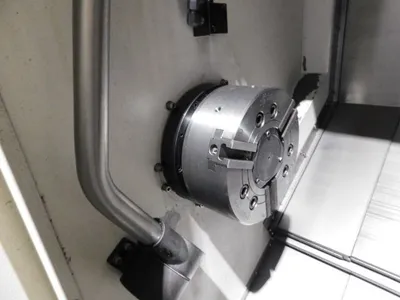

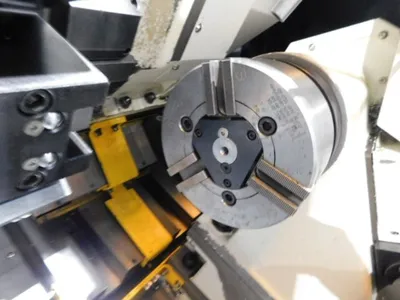

10” chuck on main, 5” chuck on sub
Tool setter

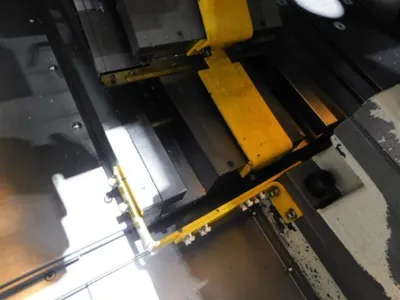

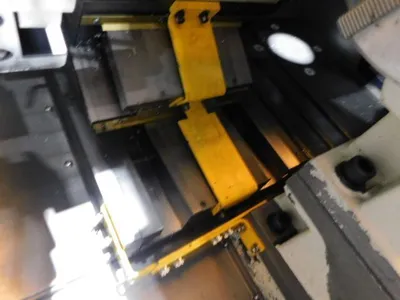

Parts catcher

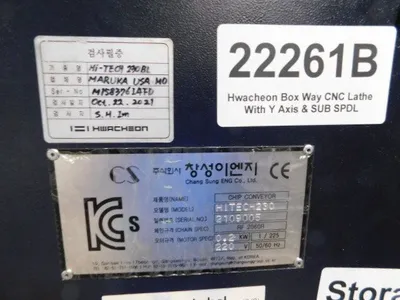

Chip conveyor with small hopper
Coolant

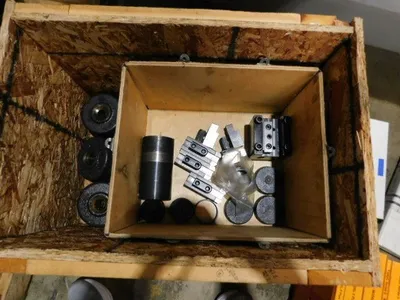

Static tools
One each radial & axial live tools

New: Oct. 2021
Run Hours: 2,484

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

In Plant & Under power!
