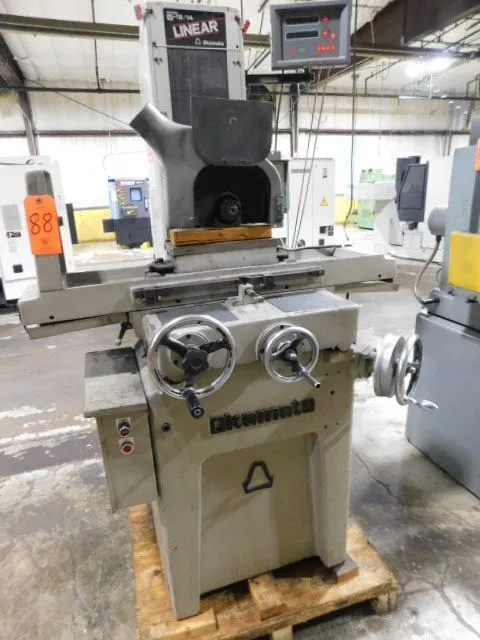

Okamoto 6-12/14 Linear Surface Grinder

ONE USED OKAMOTO PRECISION SURFACE GRINDER

Model - 6-12/14 Linear
Standard chuck size - 6" x 12" (14)
Grinding capacity - 7.5" x 14"
Max. Travel – 8” x 15”
Wheel size - 8" x 3/4" x 1.25" (max)
Motor - 2hp, 230-460v/3ph/60hz, wired 230v
Table to underside of 8" grinding wheel - 14.27"
Table to center line of spindle – 3.35” to 18”
Table movement/hand wheel revolution – 4”
Saddle movement/hand wheel revolution - 0.1"
Wheelhead movement/handwheel revolution - 0.050"
Handwheel graduation - 0.0002"
Dimensions - 1,850# x 70.4” high x 58.7” long x 46.5” wide

Standard Equipment
One shot Lubrication Table & saddle clamps
Wheel adapter Spindle "On" pilot light
Solid table reverse stop
Vacu Guard Wheel guard w/dust scoop (4) 110v outlets
Swivel wheel guard
Leveling pads & bolts Timing belt table drive
Table moves on Linear ways

Included Optional Accessories:
Walker Md. LBP Fine Pole electro-magnetic chuck
Walker Md. SVC-1.5 Variable Electro magnetic control, SN: 1065
Newall Md. DPG 2-axis DRO’s
$6,950.00, OBO
Best regards,
SN: 3961 Jerry Ditter, Pres.
