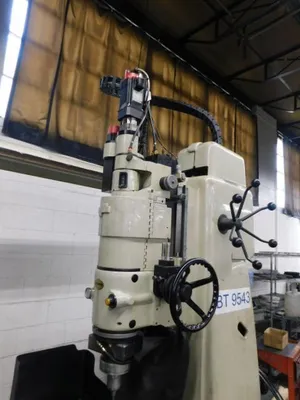

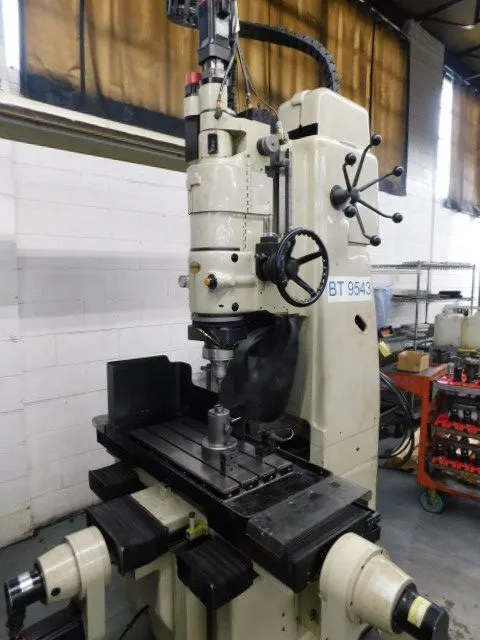

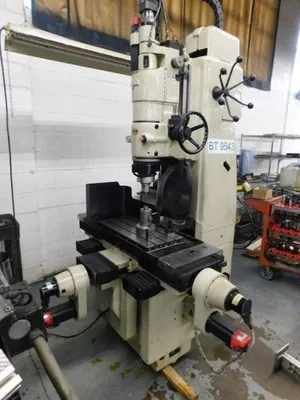

Moore Md. 450CPR 4-axis CNC Jig Grinder

ONE USED MOORE 4-AXES CONTINUOUS PATH CNC JIG GRINDER - NEW 1995

Model – 450CPR
STANDARD SPECIFICATIONS:

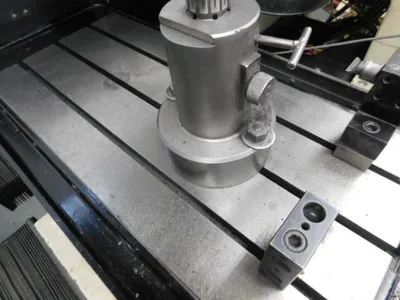

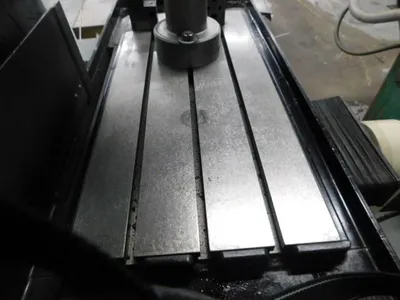

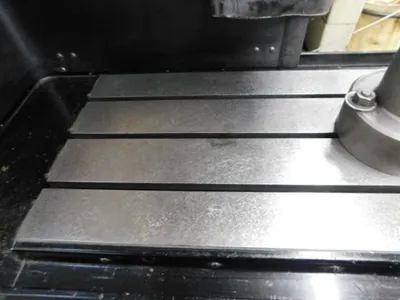

Table working surface - 11" x 24"
Table travel – 17.5”
Table cross travel – 10.5"
Spindle housing vertical travel - 12 5/8"
Spindle vertical travel (auto feed range) – 3 5/8"
Table top to wheel collet - 2 to 18"
Grinding hole capacity - 1/64" to 5"
Grinding wheel speeds - 6,000 rpm to 175,000 rpm w/optional grinding heads
Positioning accuracy (When New) - in 18" = 0.000120", in 1" = 0.000030"
Cross travel - in 11" = 0.000120", in 1" - 0.0000030"
Traverse rates - X & Y, up to 20 ipm positioning, & 10 ipm for contouring
Reciprocating rate - up to 190 cycles/min at 1" stroke
Programmable grinding head outfeed (U-axis) in increments of 0.000010" for a distance of 0.140" anywhere within full range
Weight: approximately 5,000 lbs.
Wired 460v/3ph/50-60cy
Amps draw: 25

Equipped with: Control features:

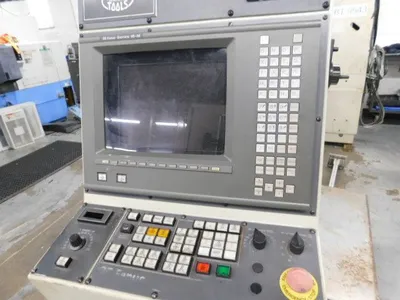

Fanuc 16-M controls Cont. path resolution to 0.000010"
Automatic sizing
Hand pulse generator
Double V-slideway uses matched roller bearings X & Y)
Automatic shutdown if air drops
Fully automatic lube for X, Y, & moving components

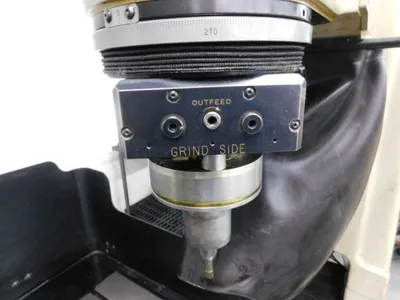

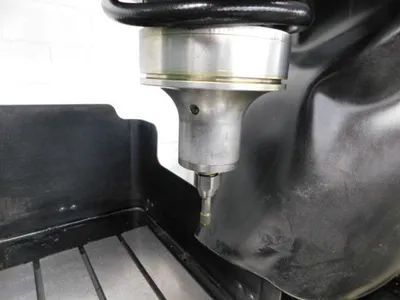

40,000 rpm grinding head

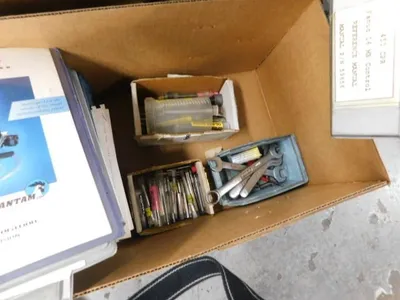

Misc. tooling

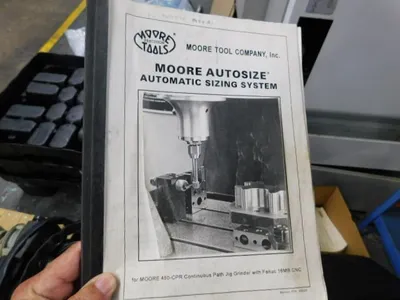

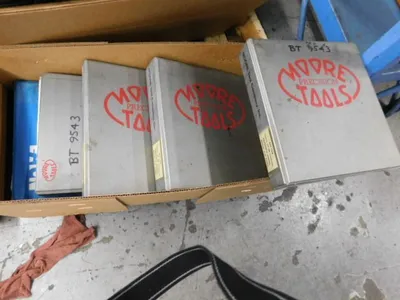

Manuals

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.


ADDITIONAL OPTIONS:
6” Riser, which would increase the table top to wheel dimension

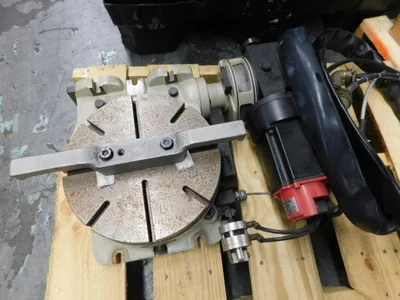

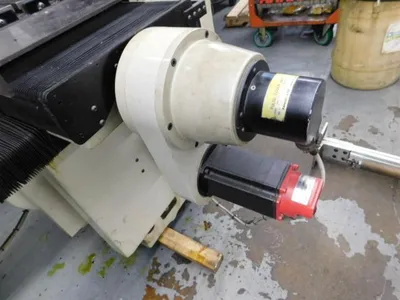

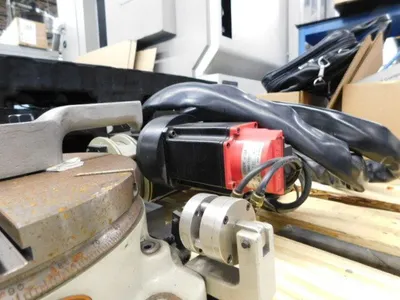

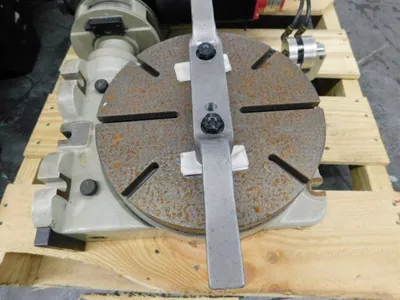

Moore CNC Rotary Table

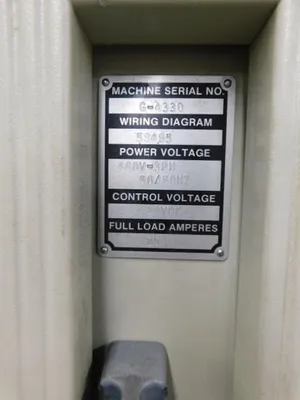

SN: G-4330, New 1995

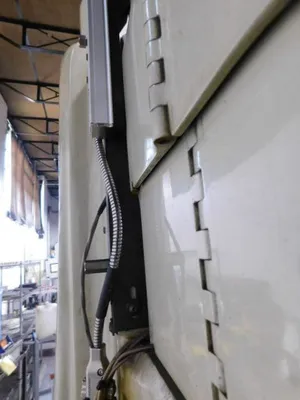

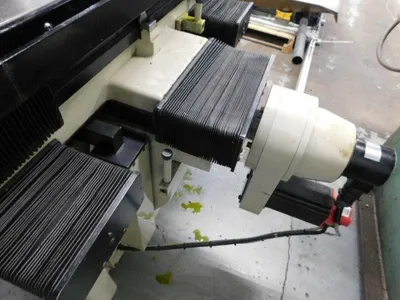

Condition: Excellent – Original scrap marks are flawless. Accordian style way covers are excellent

Location: Chicago, IL

MUST MOVE – OPEN TO AN OFFER!
