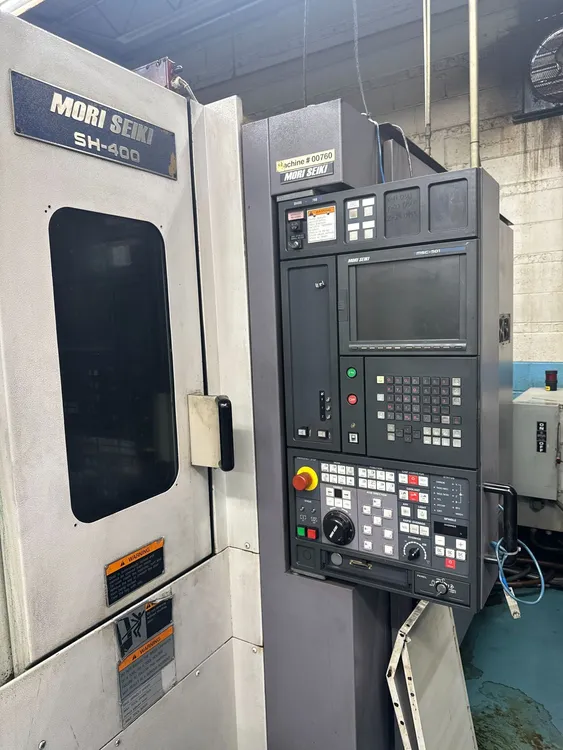

Mori Seiki SH-400 HMC

(1) USED MORI SEIKI HORIZONTAL MACHINING CENTERS

Model SH-400
Travels, X, Y, Z = 22" x 20.1" x 20.1"
Working surfaces - (2)15.7" x 15.7" pallets
Max. work piece diameter - 24"
Table load capacity - 1,100#
Max. work piece height - 25.6"
Table index time - 2.5 sec.
Rapid traverse - 1,653 IPM
Max. spindle speeds - 12,000 rpm
Spindle taper – Cat 40
Max. tool dia. - 125mm
Max. tool wt. - 8kg
Tool to tool - 1.5 sec.
Chip to chip - 3.7 sec.
Pallet change time - 5 sec.
Spindle drive motor - 30hp
Machine height - 99"
Floor space req. - 112" x 158"
Shipping dimensions: 94” x 158” x 99” high
Weight - 19,140#

Equipped with:
MSC-501 control
1 degree table indexing
Turbo Chip conveyor
Chip auger
Double arm tool changer
(60) place ATC

SN: 756 1999 $12,900.00
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

In plant and under power. Best regards, Jerry Ditter, Pres.
