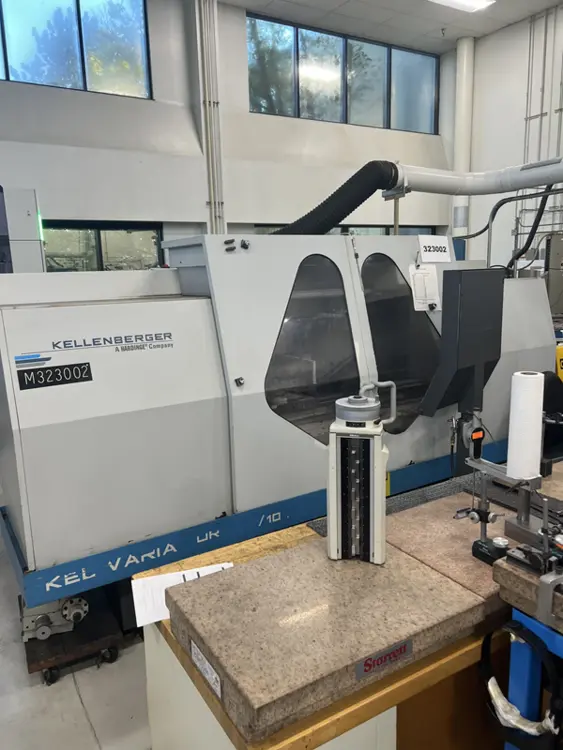

Kellenberger Universal Kel Varia UR175/1000

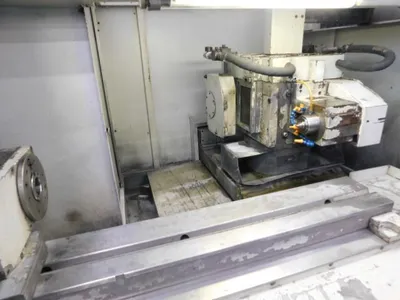

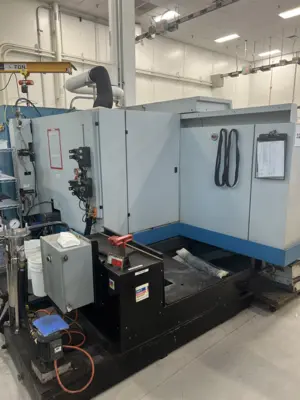

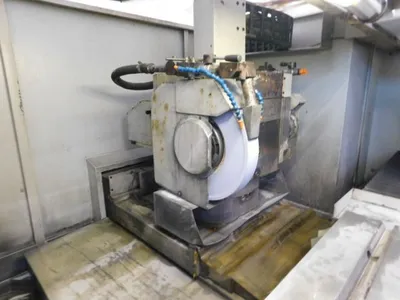

ONE USED KELLENBERGER 3-HEADED CNC OD/ID GRINDER
Model: Kel-Varia UR175/1000
Swing: 13.74”
Max. distance between centers: 39.4”

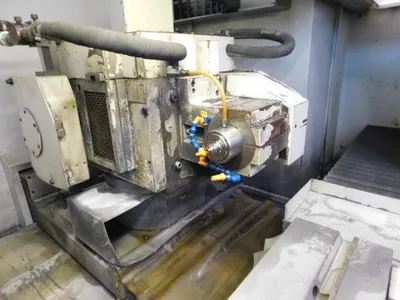

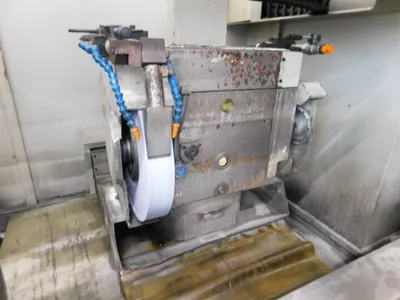

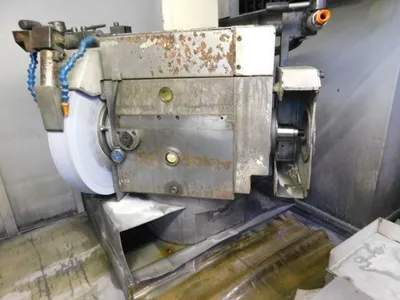

T1 spindle: 10 HP
T1 max. grinding wheel: 15.75” x 2.5” wide with 5” bore
T2 spindle: grinding wheel: 12” with 5” bore
T3 spindle: 42,000 rpm with oil mist spindle bearing lubrication
B axis programmable to the 5th decimal point of One degree
B axis rotation: up to 200 degrees
Work head rotation: -30/+120 degrees

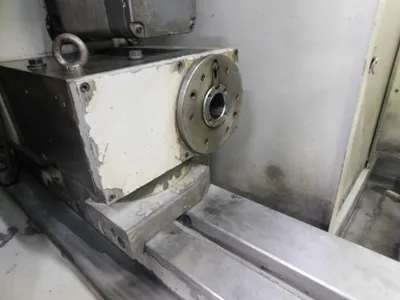

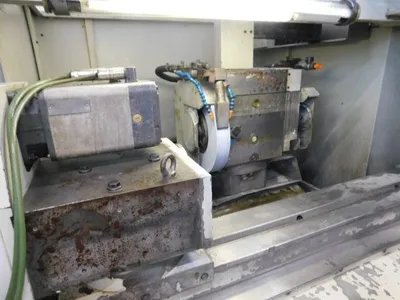

Work head: #5 MT, 5.9 HP, 5-500 rpm
Z travel: 43.9”
Weight: 13,200 lbs.
Wired: 460v/3ph/60cy
EQUIPPED WITH:
CNC controlled B axis

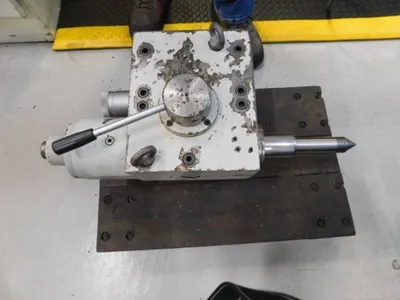

Tail stock with hydraulic retraction and micro-corrector

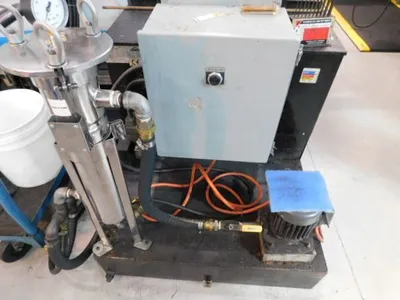

Coolant with filtration system
Work head with dresser mounted on the back side

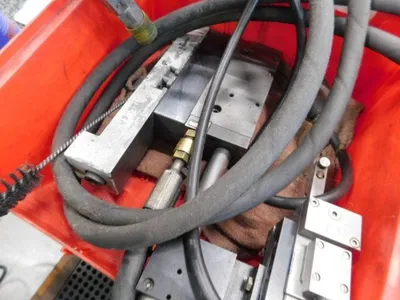

Removable “Flager” gauging system (Shoulder gauge) by Movomatic
Movomatic gap control
Kel-Set tool measuring system
Prepped for Auto Sizing attachment
Prepped for Darenth filter 1040
2) wheel hubs for T2
2) wheel hubs for T1

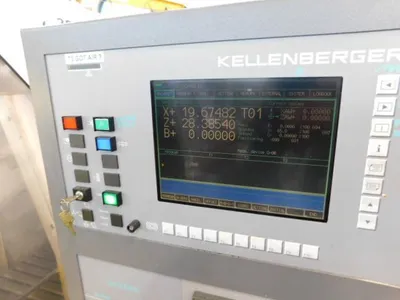

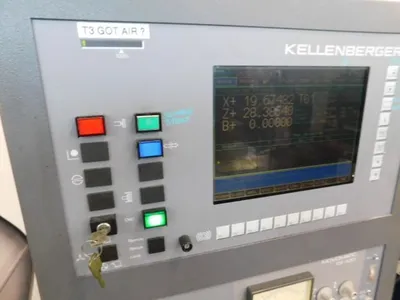

Kelco 90 CNC controls
Vibration dampening bases
Manuals
New in 1997 and was under an ISO Preventative Maintenance contract every two years.
Work Head will be completely professionally rebuilt by Matthews Machinery which includes all new bearings, seals, springs, grease, V-rings, belts, gaskets, and MT5 spindle if required.

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

In Chicago area plant and under power.
