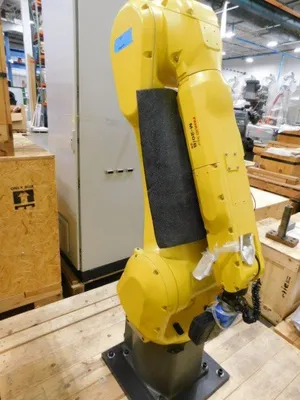

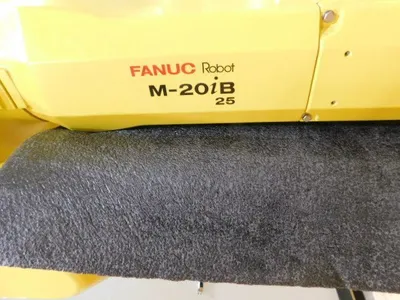

Fanuc M-20iB/25 6 axis robot

1-USED FANUC M-20iB/25 6 AXES ROBOT WITH R-30iB CONTROLLER

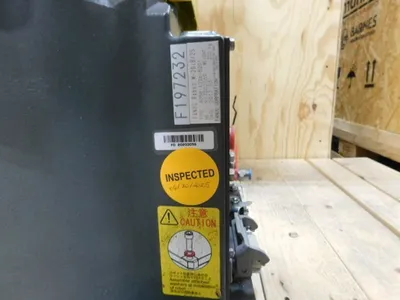

SN: F197232
DATE OF MFG. 10/2017
Hours: 269.7 – originally used to load parts into a Studer CNC Cylindrical grinder
===========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

The FANUC M-20iB/25 is a smaller robot with a payload of 25kg. This advanced M20iB/25 has an advanced design, combining a lightweight hollow upper arm and wrist, with the cables that run inside the arm. The Fanuc M-20iB/25 runs on the R30iB Controller.
Robot Specifications:
Axes: 6
Payload: 25kg
H-Reach: 1853mm
Repeatability: ±0.05mm
Robot Mass: 250kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 205 °/s (3.58 rad/s)
J2 205 °/s (3.58 rad/s)
J3 260 °/s (4.54 rad/s)
J4 415 °/s (7.24 rad/s)
J5 415 °/s (7.24 rad/s)
J6 880 °/s (15.36 rad/s)

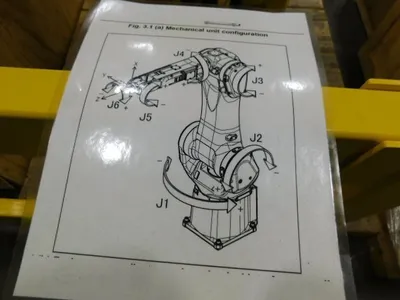

Robot Motion Range:
J1 +340° - 360°
J2 ±240°
J3 ±303°
J4 ±400°
J5 ±290°
J6 ±540°

Applications:
Material Handling Robots
Pick and Place Robots
Machine Tending Robots
Machine Loading Robots
Material Removal Robots
Deburring Robots
Waterjet Robots

EQUIPPED WITH:

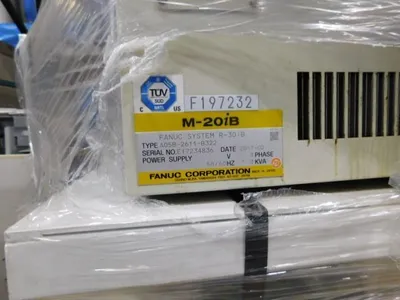

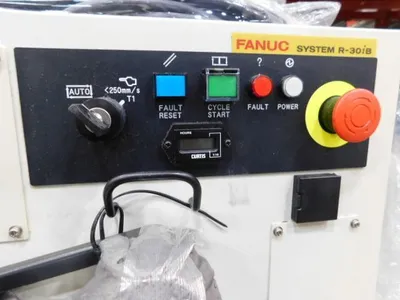

FANUC R-30iB ROBOT CONTROLLER
FANUC ROBOT CONNECTION CABLES

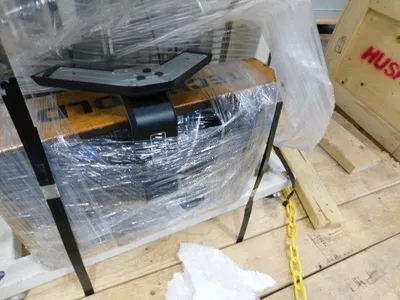

FANUC COLOR I-TEACH PENDANT

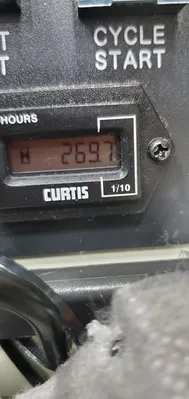

CURTISS HOUR TIMER

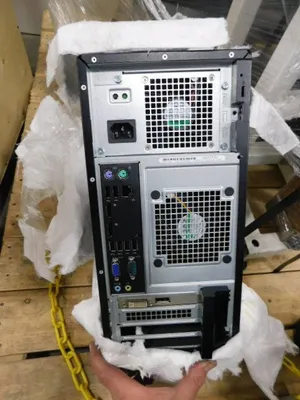

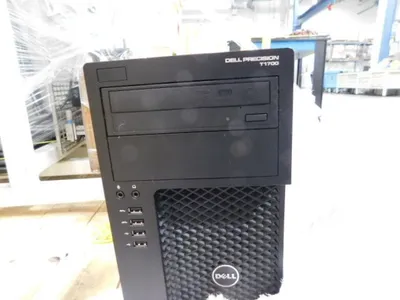

DELL Md. T1700 Precision COMPUTER W/MONITOR

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot you’re calling about.

F.O.B. -Buffalo Grove, IL $

Also available:

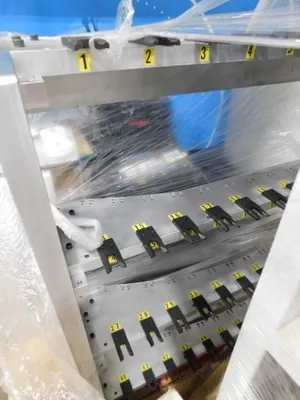

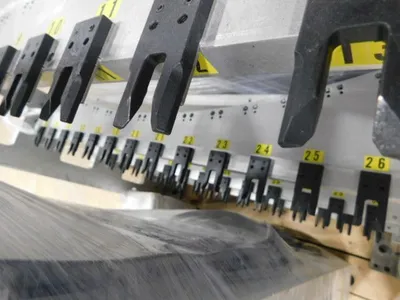

53 station loading/unloading station that accepts either 3R or Erowa tooling
$

F.O.B. – Buffalo Grove, IL
