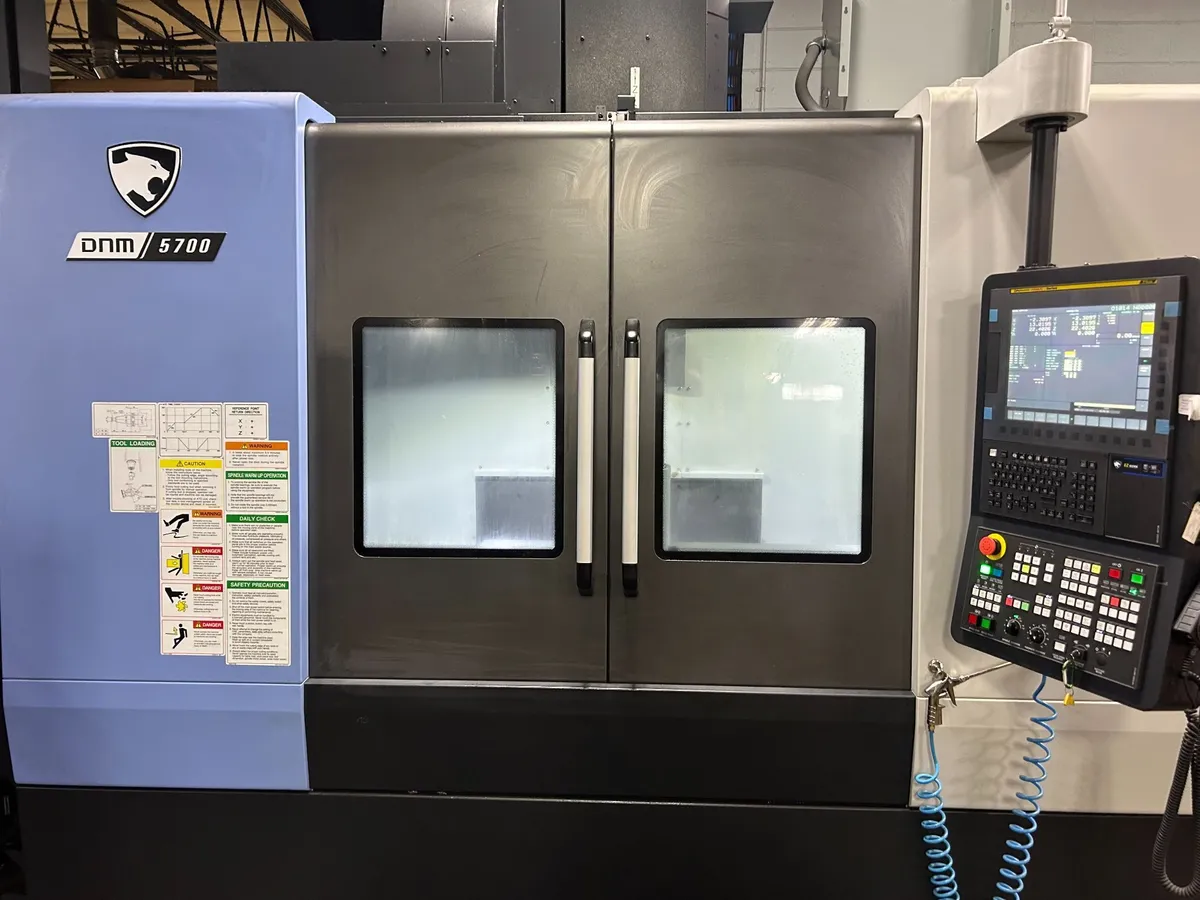

DN Solutions Md. DNM 5700 with Extended Height and travel, Like New VMC
Have one to sell?
ConditionUsed
1 available
Only 305 Cut hours and a brand new Samchully Md. S-250F4 rotary table and the machine has 300mm of extended height in the Z axis
Travels: X-Axis: 41.33", Y-Axis: 22.44", Z-Axis: 20.07"
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9" – 25.98" is standard but this machine adds 300mm (11.81”) to the max, opening in Z axis bringing it to 37.791”.
Table Size: 51.18" x 22.44"
Max Weight on Table: 2,204 lbs
Speed Range: 12,000 RPM
Taper Size: 40 Big Plus
Spindle Power: 15 HP
Overall Dimensions: 131" x 95" x 117" High
Weight: 14,700 lbs.

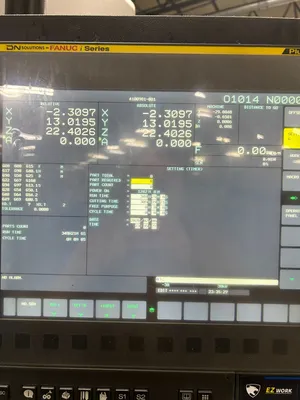

DN Solutions - Fanuc Oi Series CNC Control
30 Station Side Mounted Tool Changer
Renishaw OMP60
LNS Chip Conveyor with variable speed drive and M-code capability
Chiller
300mm Expanded height in Z axis (one piece frame, not a riser)

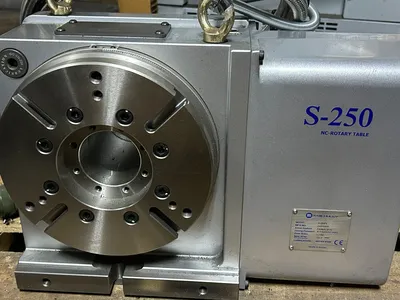

Brand new in crate: 1) Samchully Md. S-250F4 rotary table with t-slotted faceplate
Coolant thru spindle
Hydraulic closure
