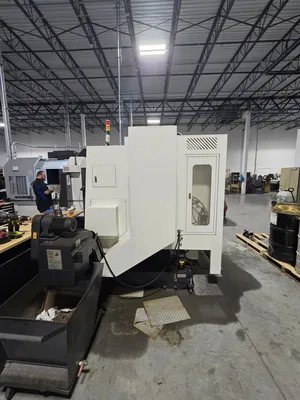

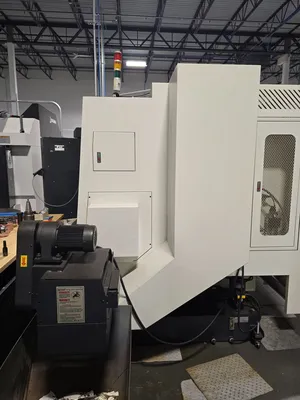

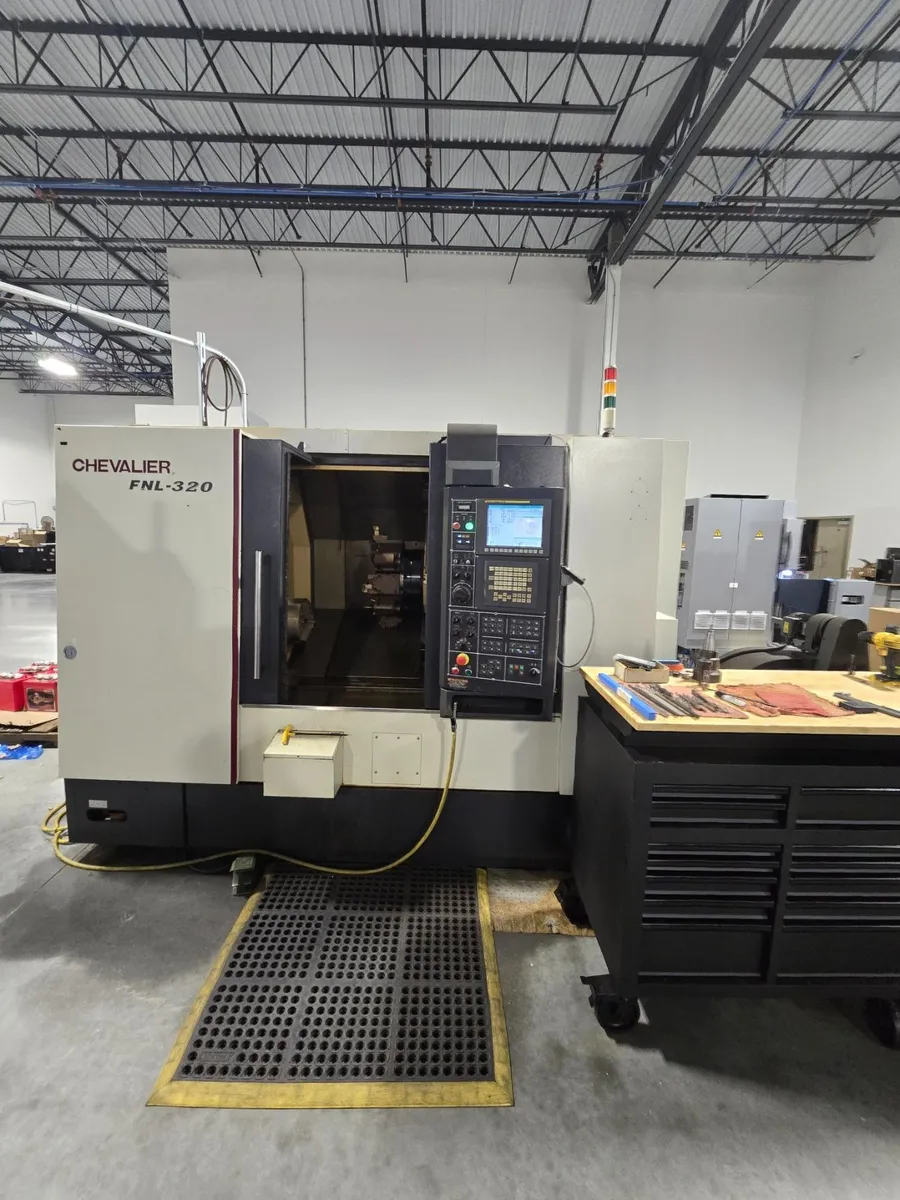

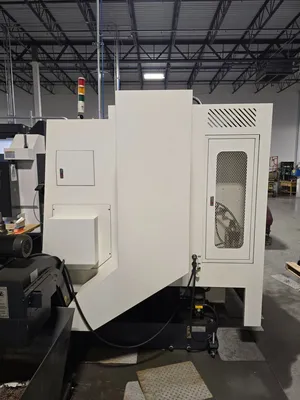

ONE USED CHEVALIER 5-AXIS CNC LATHE
Model: FNL-320Y
Swing: 600mm
Max. cutting diameter: 460mm
Max. cutting length: 280mm
Max. bar capacity: 77mm
Spindle nose: A2-8
Chuck size: 10”
Spindle RPM: 3500
Spindle HP: 11/15kw
Spindle hole diameter: 88mm
Travels: X,Z,Y: 24mm xx 30mm x 110mm (+/-55mm)
Turret: 12 stations, all live mill capable
Live milling rpm: 4,000
Dimensions: 3800mm x 1800mm x 2200mm high
Weight: 5,800 kgs
Equipped with:
Fanuc Oi-TD controls
10” 3-jaw chuck
Tool setter
Tail stock
Coolant
Chip conveyor
Live tools
Static tools
Parts catcher
Manuals
Location: In Southern, WI plant and under power.

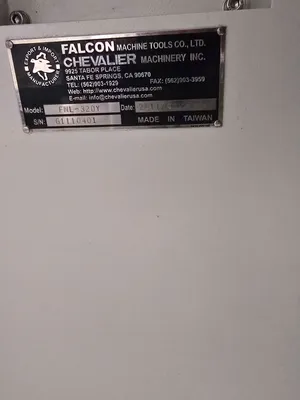

SN: G1110401, New July 2011

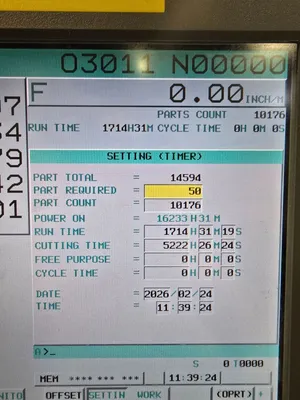

Hours: ON: 16,233 $38,500.00
Best regards,
Jerry Ditter, Pres.
Serving industry since 1978 www.ditterindustriesinc.com
