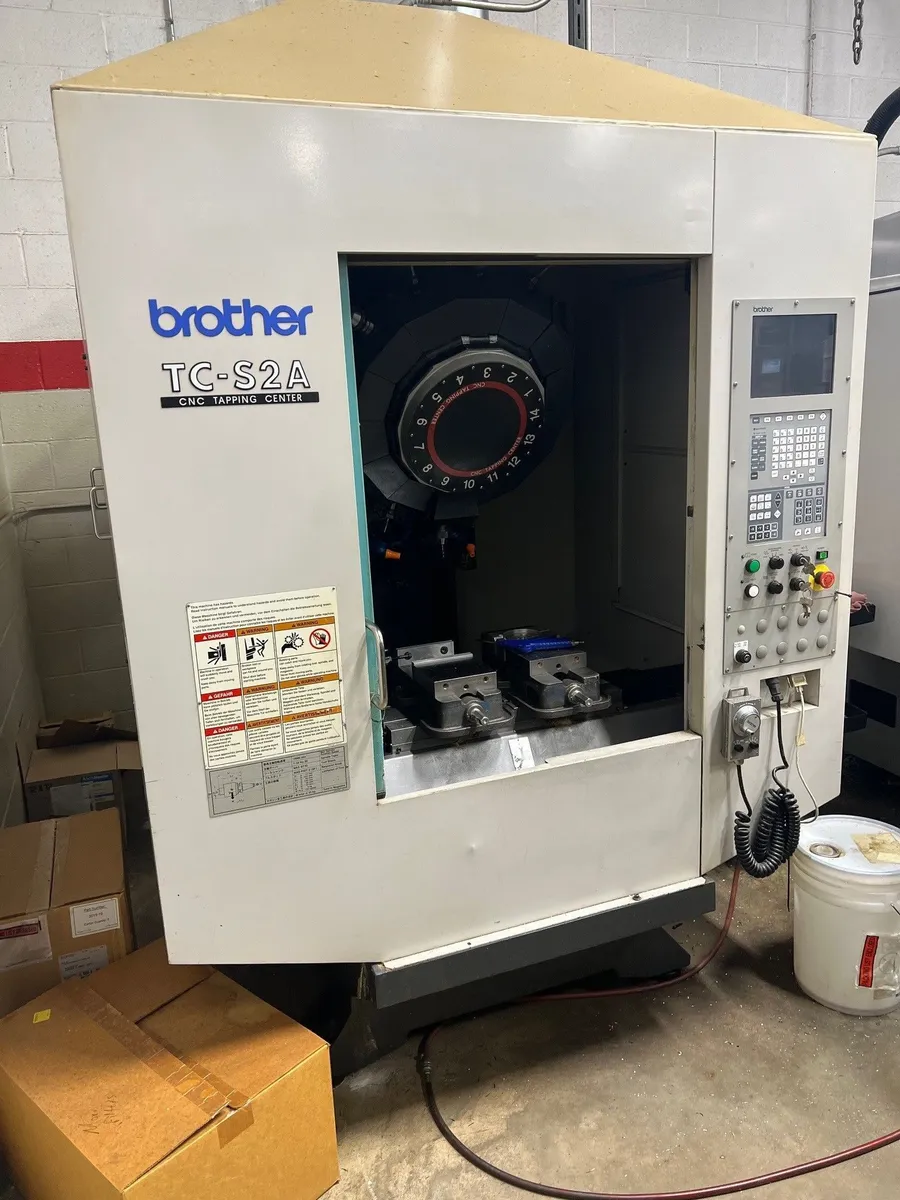

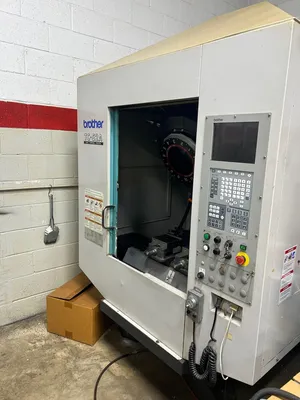

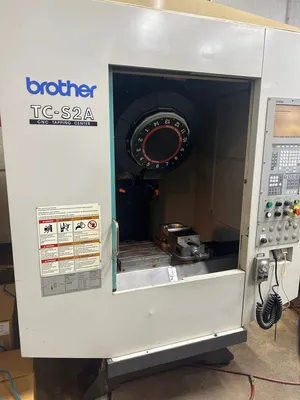

Brother Md. TC-S2A CNC Drill & Tap Machine

One used BROTHER CNC Drill & Tapping Machine with 10 Day Start Up warranty and 10 day Return Privilege
Model: TC-S2A
Specifications
X:19"
Y:14"
Z:10.5"
Table: 23 5/8” x 11 ¾”
RPM: 10,000 RPM
6,000 rpm Tapping
Cat 30 taper

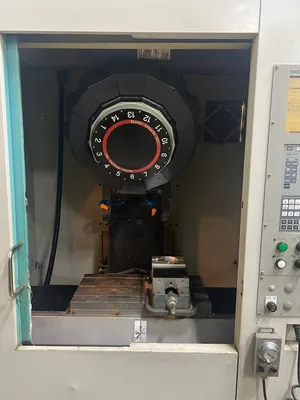

# ATC: 14
1.8 sec. chip to chip
Rapid travels: Z: 1,968 ipm, X & Y: 1,417 ipm
Dimensions: 62" x 72" x 92"
Weight: 4,000 lbs
EQUIPPED WITH:

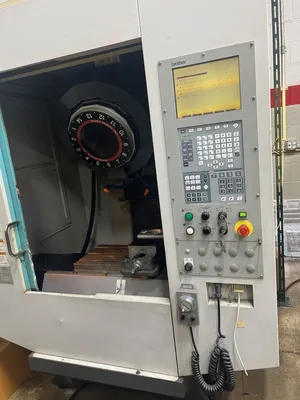

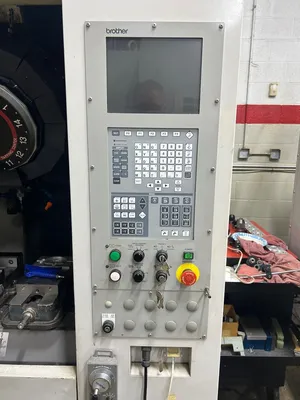

Brother CNC-A00 Conversational control with a 10.4” LCD screen, Tool length compensation, tool diameter compensation, Helical interpolation, RS-232C interface, and a Manual Pulse generator

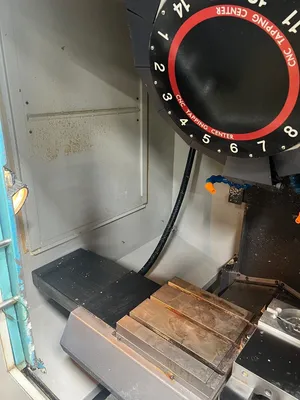

Vise
Manuals

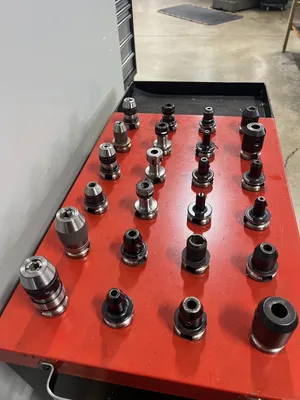

Approximately 21 Cat 30 tool holders
Full enclosures with a Top cap to prevent chips and coolant from exiting machine
Coolant
Rigid tap

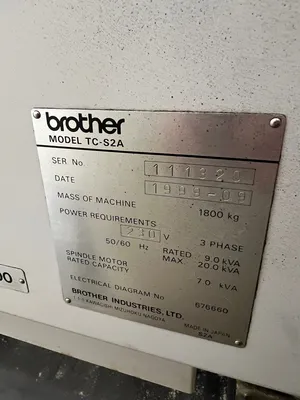

SN: 111320, New 9/1999 – Hours ON: 16,821, Run & Operation hours: 5,867
Location: In Illinois plant and under power
