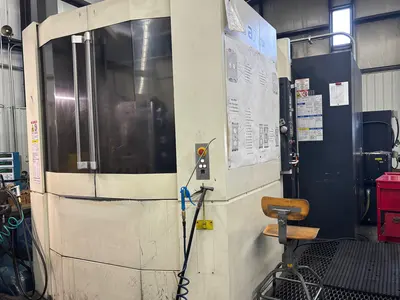

2018 Makino Md. a71NX 4-axis HMC

ONE LATE MODEL USED MAKINO MODEL a71nx HORIZONTAL FULL 4-AXIS MACHINING CENTER
Dual 19.7” x 19.7” pallets
Travels: X, Y, Z, - 31.5” x 29.5” x 32.7”
HP: 37kw or 49.6 HP
512 Nm/378 ft/.lbs. of torque
B axis 90 degree indexing time: 1 sec
B-Axis: 360° Direct Drive Rotary Table
Spindle RPM: 10,000 rpm
Spindle Taper: CAT50
Rapid Traverse: (X / Y) 1,968 ipm, (Z) 2,362 ipm
Cutting Feedrate: 1,968 ipm
Maximum Workpiece: ø35.4" x 39.4"
Maximum Payload: 2.200 lbs

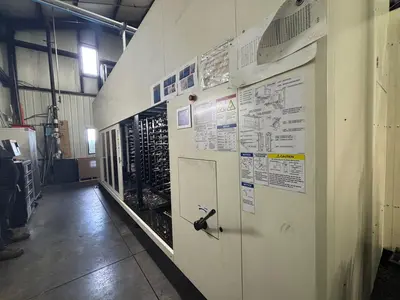

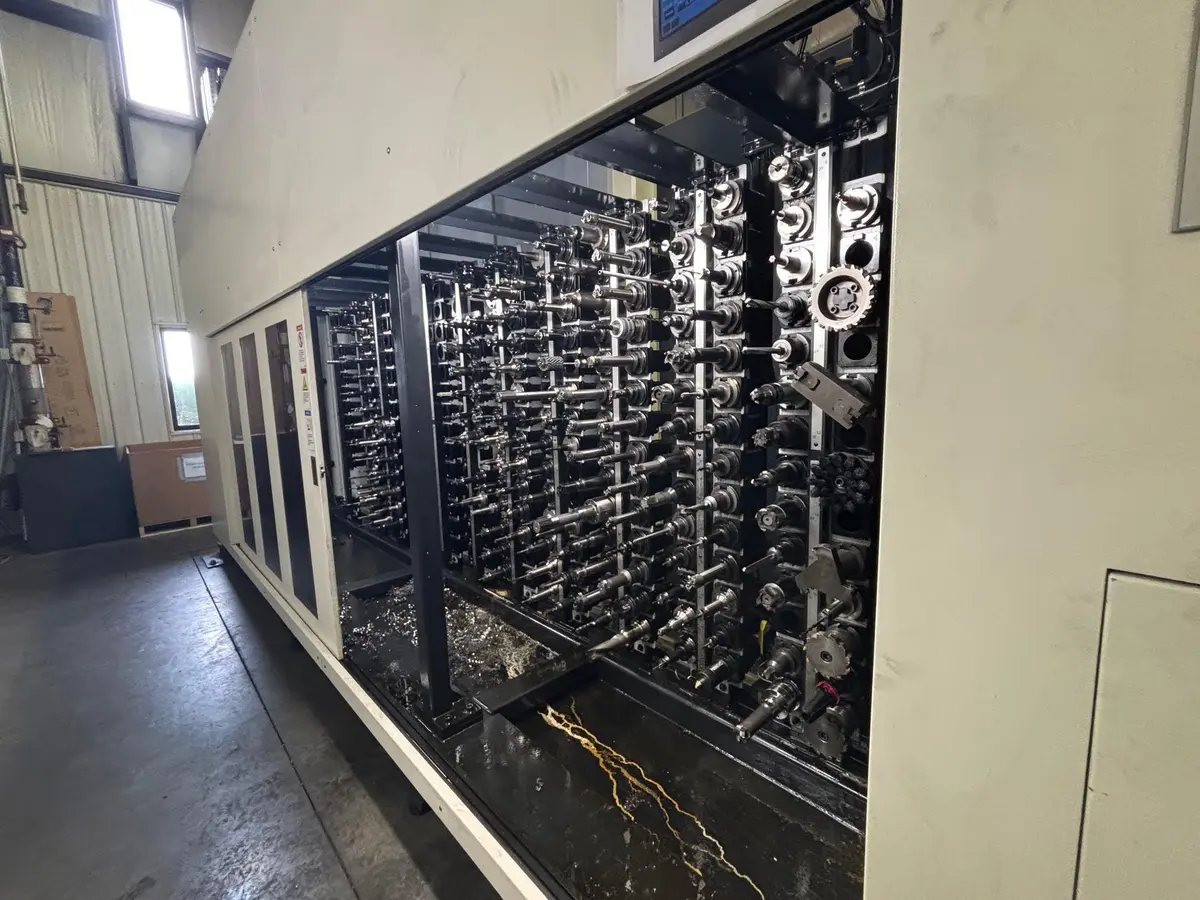

ATC Capacity: 299
Tool to Tool: 1.7 sec (≤ 20kg)
Chip to Chip: 3.6 sec (≤ 20kg)
Maximum Tool Diameter: 11.8"
Maximum Tool Weight: 44.1 lbs (66 lbs with limitations
Wired 220V/3ph/60cy
Weight: 34,000 lbs.
EQUIPPED WITH:

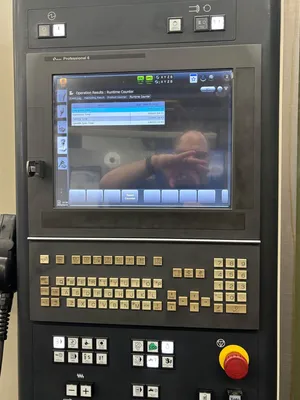

Pro 6 CNC controls, User memory 2GB+1GB, 400 pairs of Tool offsets, 1,100 Custom Macros variables, High speed skip, Adaptive control function
Vision type Broken Tool Sensor
Rigid tap
2) 500mm pallets drilled and tapped
8) Nozzle coolant
Flood coolant
High pressure Coolant thru spindle
Terrace washing coolant

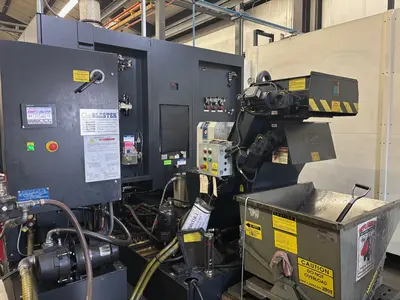

Chip Blaster HV40 1,000 psi coolant, 10.5 GPM
Renishaw RMP 600 Rengage TM probe
Air dryer
Automatic fire extinguisher
3-layer signal light
Mayfran chip conveyor
Hydraulic fixture clamping
New: 2018
Hours:
ON: 49,610
Operation: 16,802
Cut: 11,884
Spindle Run: 14,652
In plant and under power.
