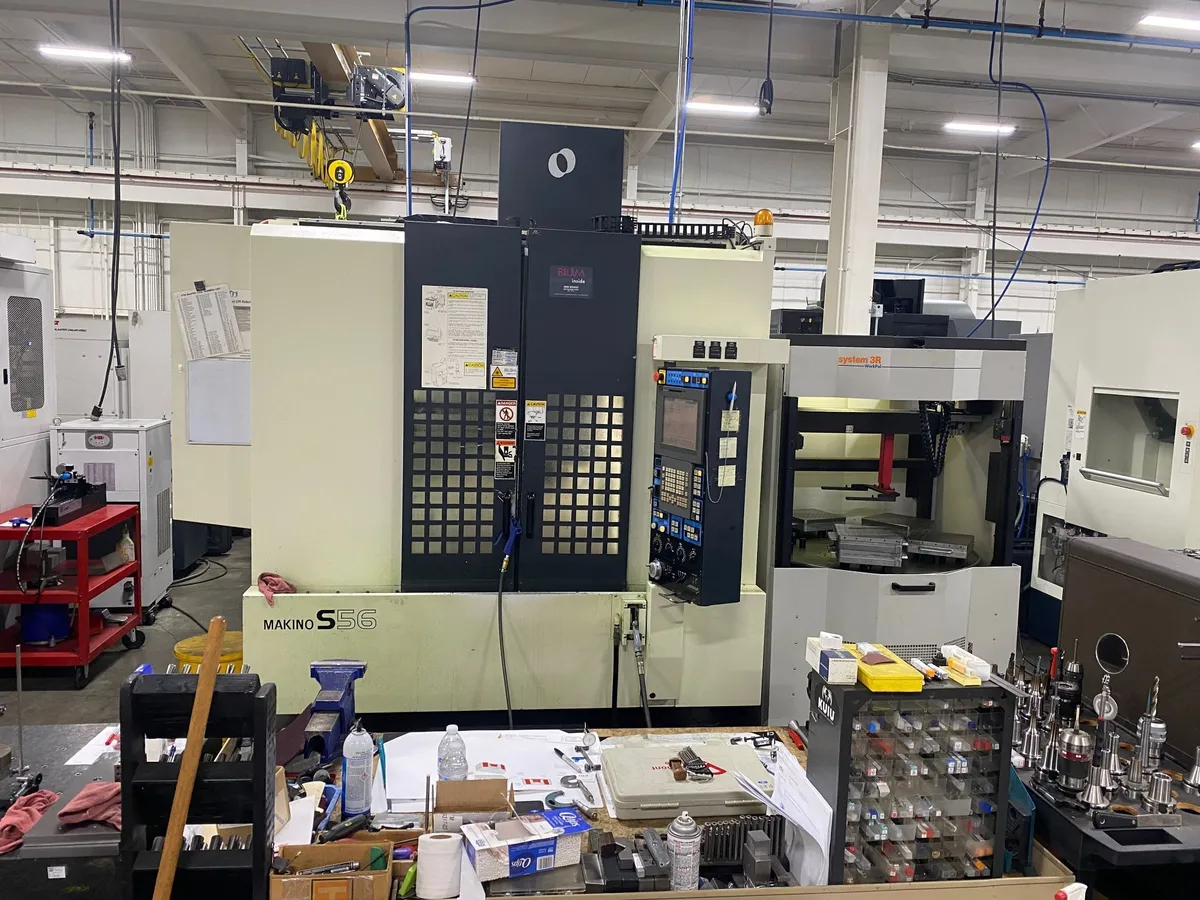

Makino S56 with Erowa "Work Pal" pallet system

ONE USED MAKINO HARD MILLING HIGH SPEED VERTICAL MACHINING CENTER

Model: S56
Table: 39.4” x 19.7”
Max weight on table: 1,325 lbs.
Travels: X,Y,Z: 35.4” x 19.7” x 19.7”
Rapid traverse rates: 1,574 ipm
RPM: 20,000
Spindle HP: 20
Spindle taper: HSK-63a
ATC: 20 place
Dimensions: 99.25” x 109” deep x 116” high (maximum Operating height)
Weight: 16,500 lbs.

EQUIPPED WITH:
Pro 5 controls
Coolant through spindle
Chip Blaster
Rigid tap
Graphite package included (this machine never cut graphite, only nylon and SS using mostly 12 mm tooling)
Erowa “Work Pal” 5-position pallet system with 3R Automation pallets
Approximately 40) Makino Stainless steel MST HSK-63a tool holders
Manuals
SN: V110162, New 4/2008

Note: This machine was only used for “fine finishing”, never for heavy metal removal.

Condition: Excellent In plant and under power until end of June.

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

$39,500.00

Best regards, Jerry Ditter, Pres.
