Moore 450 CPZ

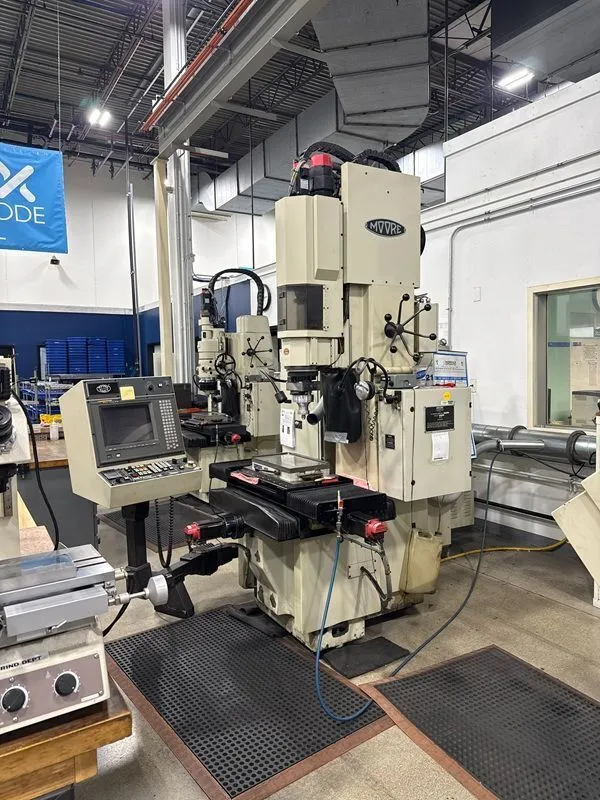

ONE USED MOORE 4-AXES CONTINUOUS PATH CNC JIG GRINDER - NEW 1998

Model – 450CPZ
STANDARD SPECIFICATIONS:
Table working surface - 11" x 24"
X Table travel – 19.6”
Y Table cross travel – 11.8”
Z travel – 13.80”
Spindle housing vertical travel - 12 5/8"
Spindle vertical travel (auto feed range) – 3 5/8"
Table top to wheel collet - 2 to 18"
Grinding hole capacity - 1/64" to 5"
Grinding wheel speeds - 6,000 rpm to 175,000 rpm w/optional grinding heads
Positioning accuracy (When New) - in 18" = 0.000120", in 1" = 0.000030"
Cross travel - in 11" = 0.000120", in 1" - 0.0000030"
Traverse rates - X & Y, up to 20 ipm positioning, & 10 ipm for contouring
Reciprocating rate - up to 190 cycles/min at 1" stroke
Programmable grinding head outfeed (U-axis) in increments of 0.000010" for a distance of 0.140" anywhere within full range
Weight: approximately 5,000 lbs.
Wired 460v/3ph/50-60cy
Amps draw: 25

Equipped with: Control features:
Fanuc controls Cont. path resolution to 0.000010"
Automatic sizing
Hand pulse generator
Double V-slideway uses matched roller bearings X & Y)
Automatic shutdown if air drops
Fully automatic lube for X, Y, & moving components

Misc. tooling
Manuals

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
