Haas Model VF5/40 Next Gen control, 4-axis, geared head VMC with a 50 place side mounted ATC
Have one to sell?
ConditionUsed
1 available

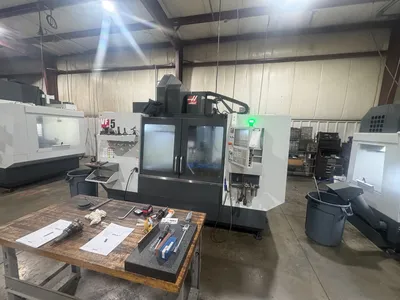

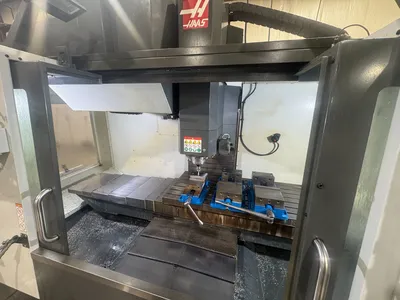

ONE USED HAAS VF-5/40 4-AXIS VMC
Model: VF-5/40
Travels: 50” x 26” x 25”
Spindle nose to table: 29.2” to 4.2”
Table: 54” x 24”
Max. weight on table: 4,000 lbs.
Spindle rpm: 10,000 – geared drive
Spindle HP: 20
Max. torque: 250ft. lbs @ 450 rpm
Rapid traverse speeds: 710 ipm
Cutting feedrates: 500 ipm
Max thrust: X= 2,550 lbs./ft, Y & Z = 4,100 lbs./ft
ATC: 50 place
Max. tool weight: 12 lbs.
Tool to tool: 4,2s
Chip to chip: 4,5s
Dimensions: 168” x 101” x 109” (118” high operating height)
EQUIPPED WITH:

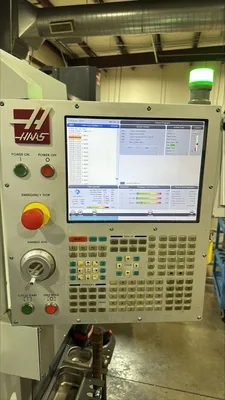

Haas “Next Gen” CNC Controls
1 GB memory
High Speed machining
Rigid tap
Coolant system
Programmable coolant nozzle
Chip auger
Advanced Tool Management
Chip washdown feature
Early Power Failure Detection Module
Ethernet Interface
HaasConnect: remote Monitoring
HaasDrop
ECO Mode
Media Display M-code: M130
Multi Stage coolant pump
Safe run
Stainless steel way covers
Power surge protection
WIFI connection for Haas control
Window air blast
300 psi Through Spindle Coolant Package, VOP D
Auxillary coolant filter
High Intensity lighting

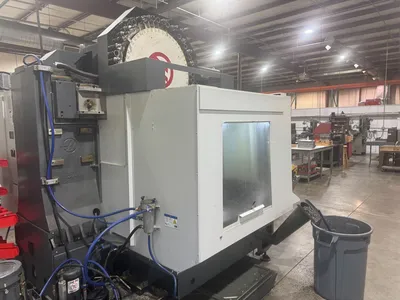

SMTC-50-40T-VM 50+1 place side mounted ATC
4th axis drive
WIPS
HV-ISO-XFRMR Internal High Voltage Isolated Transformer
Chip Tray Filter Kit
10,000 rpm, Cat 40, 20 HP, Vector drive 2-speed gearbox
Wired 440V/3ph/50-60cy, CE rated
Dimensions: 168” x 101.5” x 109” high
Weight: 12,700 lbs.
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
New: 9/2019
Condition: Excellent
Inspect under power.
Best regards, Jerry Ditter, Pres.
Imperial
| X | 50" |
| Y | 26" |
| Z | 25" |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 24 |
| Taper | CT or BT 40 |
| Table-W | 23" |
| Table-L | 52" |
| # Axis | 3 |
